Anti-vandal LED Switch

More than a switch

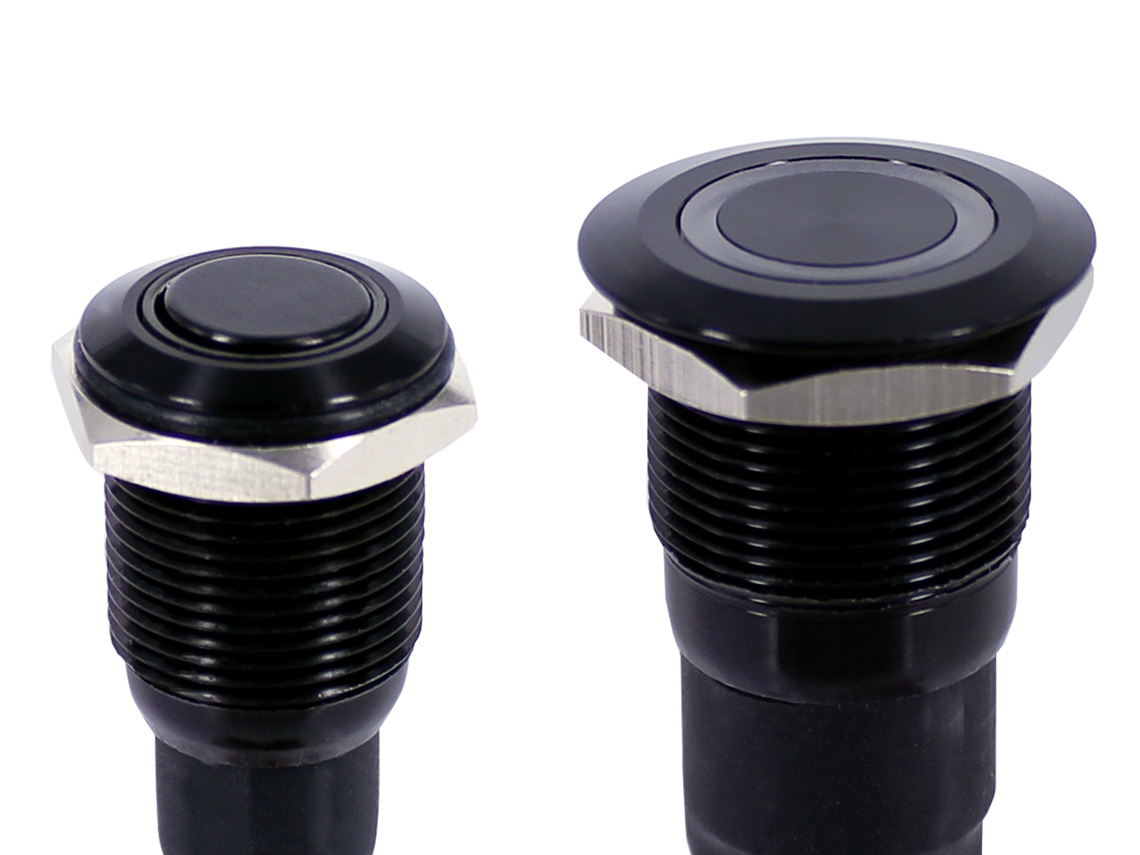

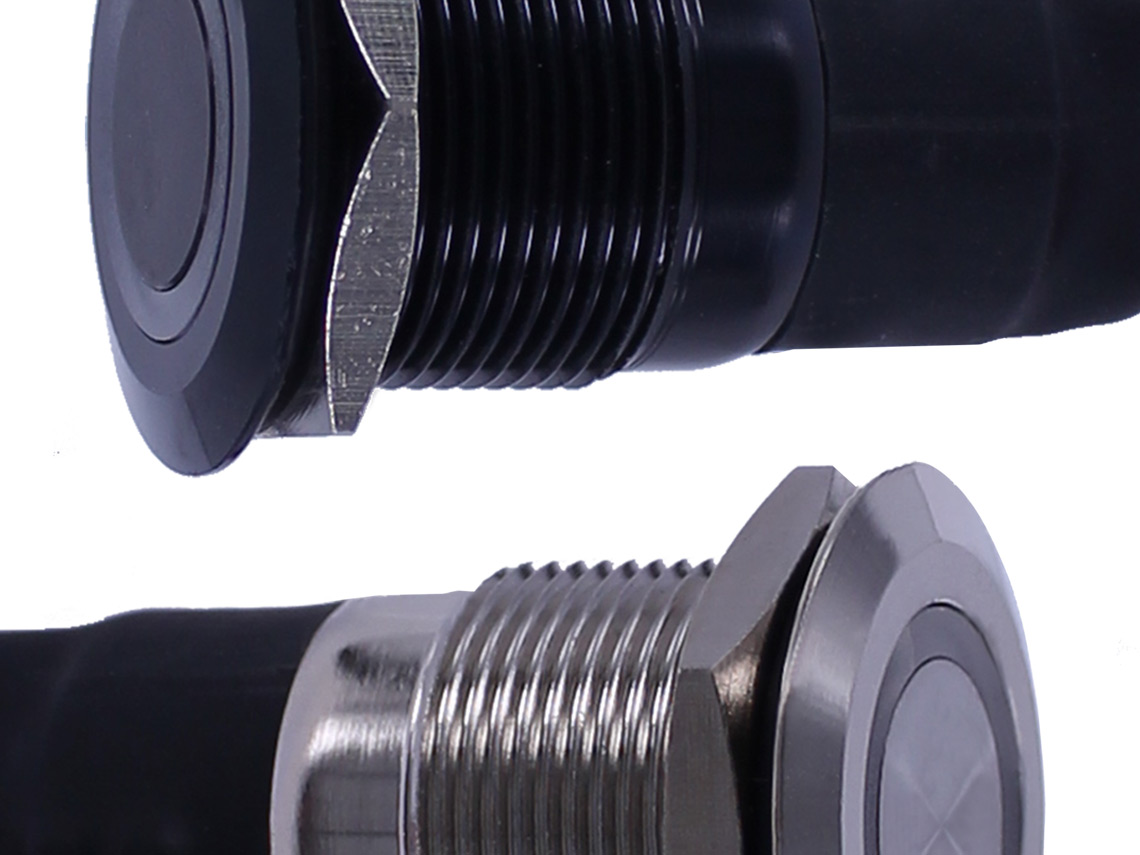

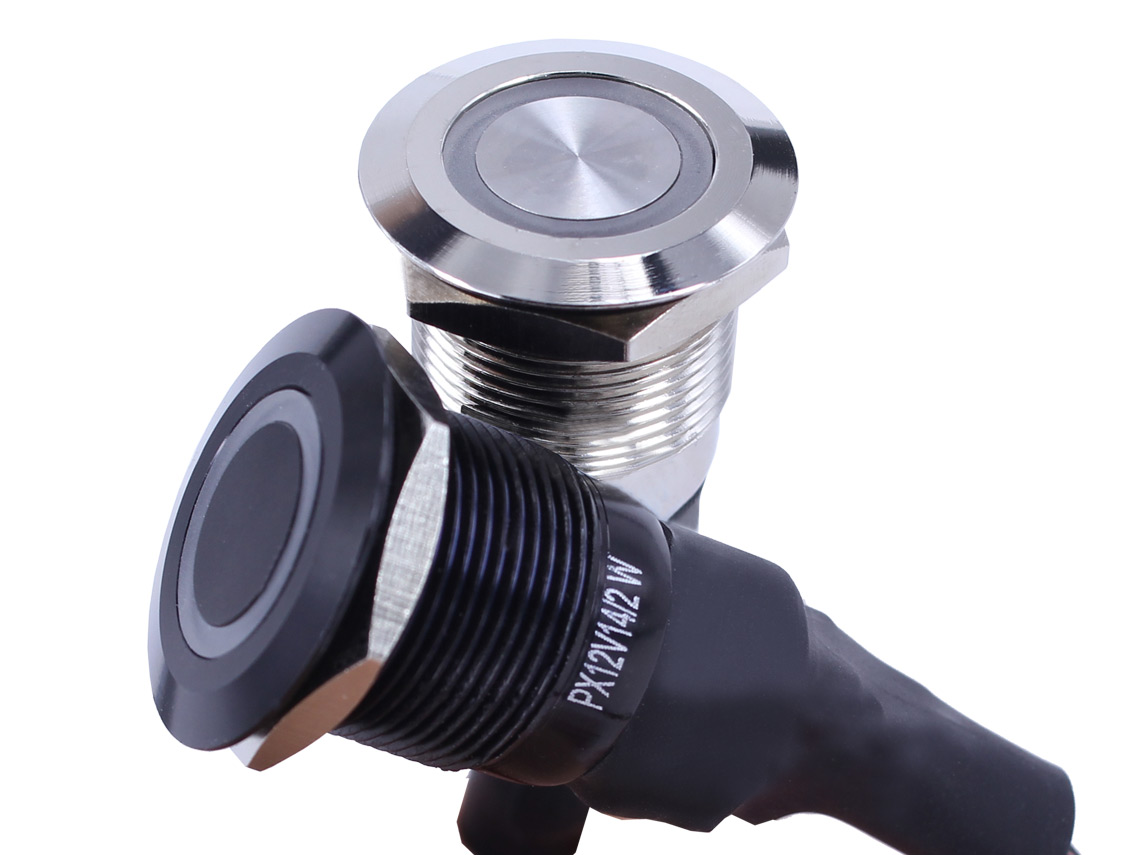

An exclusive high quality Anti-vandal LED switch. Fancy style and elegant appearance with high quality stainless steel housing, the applications of these little switches are more than switching. Different variations are available: Two housing colors - Elegant Black and Silver Chrome; Five cool LED ring colors - Red, Blue, Green, Amber, and White; Two sizes - 16mm and 25mm diameter. All these switches are pre-wired with about 3 feet of wire, so you're ready to go right out of the box. Or if you want to add your own wires, the switches are also available without wires.

We provide two types of switches, Latching and Momentary.
Latching - push to switch on, push again to swtich off.
Momentary - push and hold to switch on, release to switch off.


  • Category: Switch | Automotive

Variations

Anti-vandal LED Switch
Housing Color:
Black
Silver
Diameter:
16 mm
25 mm

Connection Type3 red/black/brown wiresDimmableNo
IP RatingIP67Polarity SensitiveYes
Operating Voltage Range12 VDCWire Gauge22 AWG
Weight16mm Silver: 32 grams
16mm Black: 25 grams
25mm Silver: 37 grams
25mm Black: 29 grams
HousingStainless Steel
Wire Length1 meterDiameter16mm, 25mm
Max Current3A at 12VDC

File Description
Technical Drawing - Anti-vandal LED Switch
